| Dimension | N/A |
|---|---|
| Colour: | Grey RAL 9006, aluminium |
| Minimum height: | 700 |
| Maximum height: | 1000 |
| Weight: | 18 |
| Maximum Load: | 100 |
| Thickness of table top: | max. 18 |
| Code: | SKRCH-C |
| Type of product: | Manually adjustable table frames |
| Availability: | For Order |
| Producer: | ALUPRESS |
TABLE FRAMES SKRCH-C

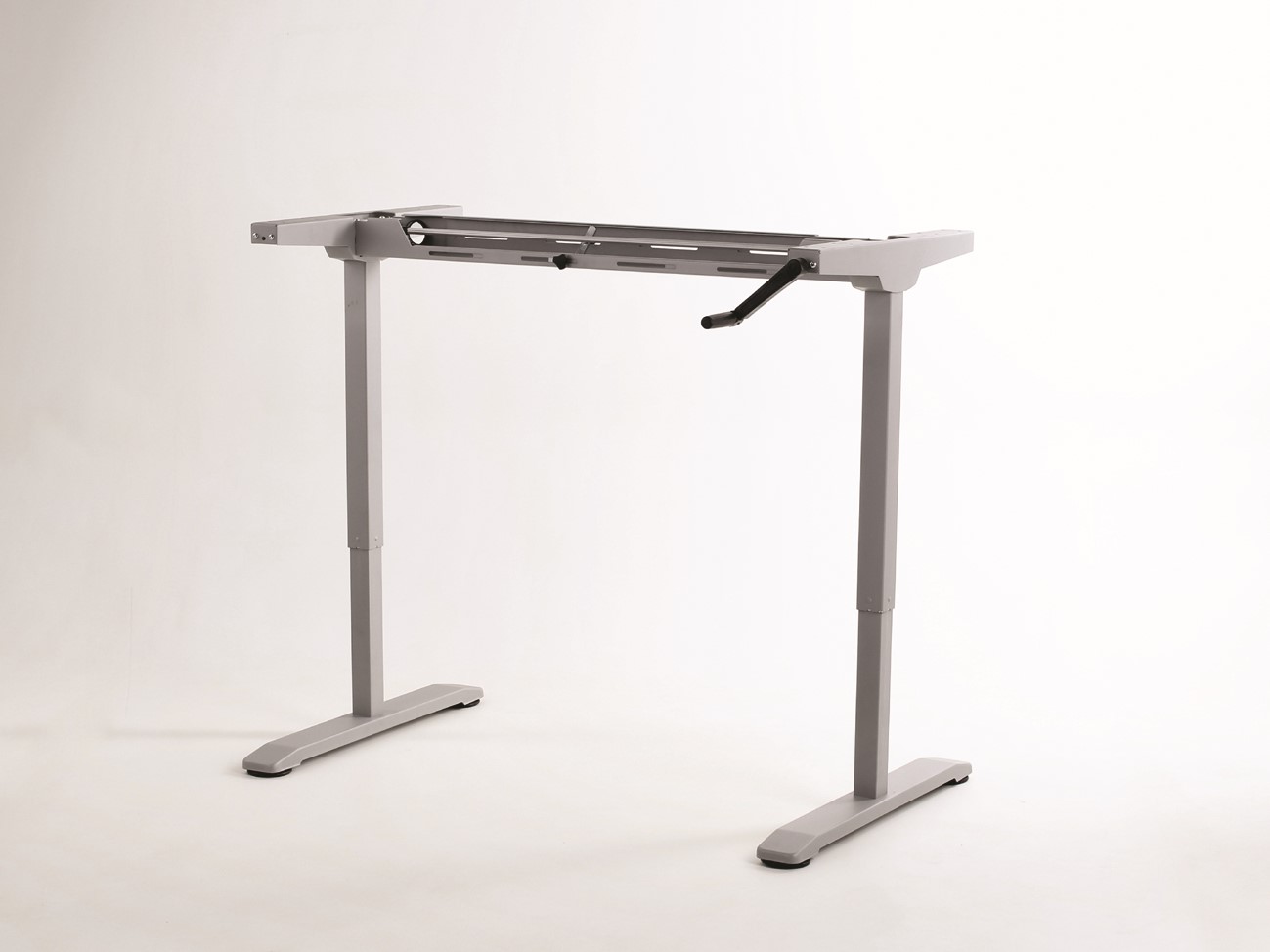

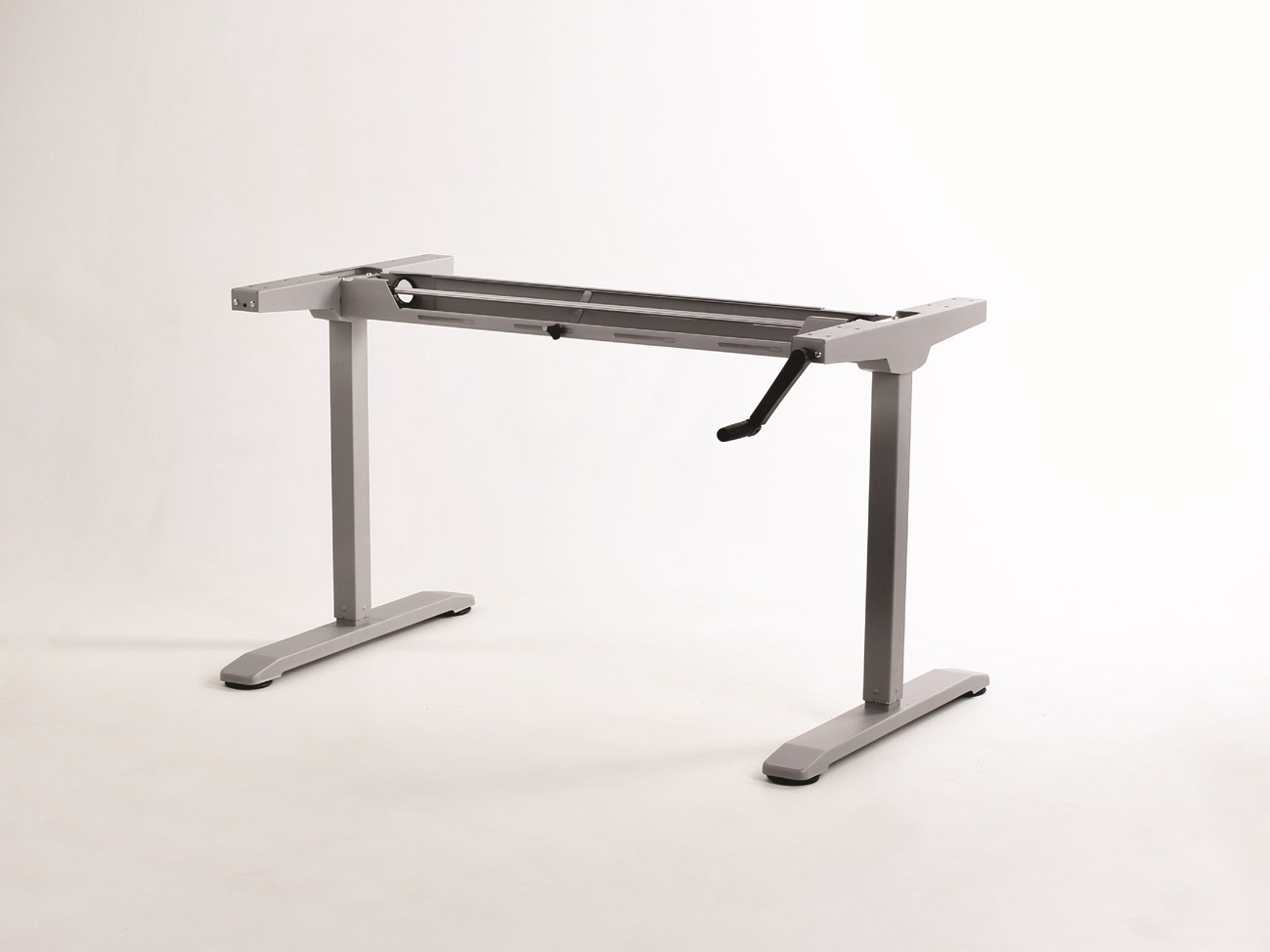

Manually adjustable table frame SKRCH-C
Mechanically height-adjustable frame (crank) with modern design, easy assembly and very easy individual table height adjustment. Adjustable width (1200-1800 mm) and height (685-1000 mm).
Min. height: 685 mm
Max. height: 1000 mm
Weight: 18 kg
Colour: RAL 9006 grey, aluminium
Load capacity: 100 kg
NOTES:
We recommend using a table top with a thickness of 18-25 mm, in laminated chipboard material. In the case of using a different material, a larger or smaller board thickness or a larger overall dimension than what we have indicated in the catalogue, we will suggest an adequate assembly solution. Otherwise we cannot provide a product guarantee.
(Minimum order of 5 pieces – not valid for branch customers)
